Replacement for Farnell / Advance F2705, F2905 and 160 series rectifiers

Contact us

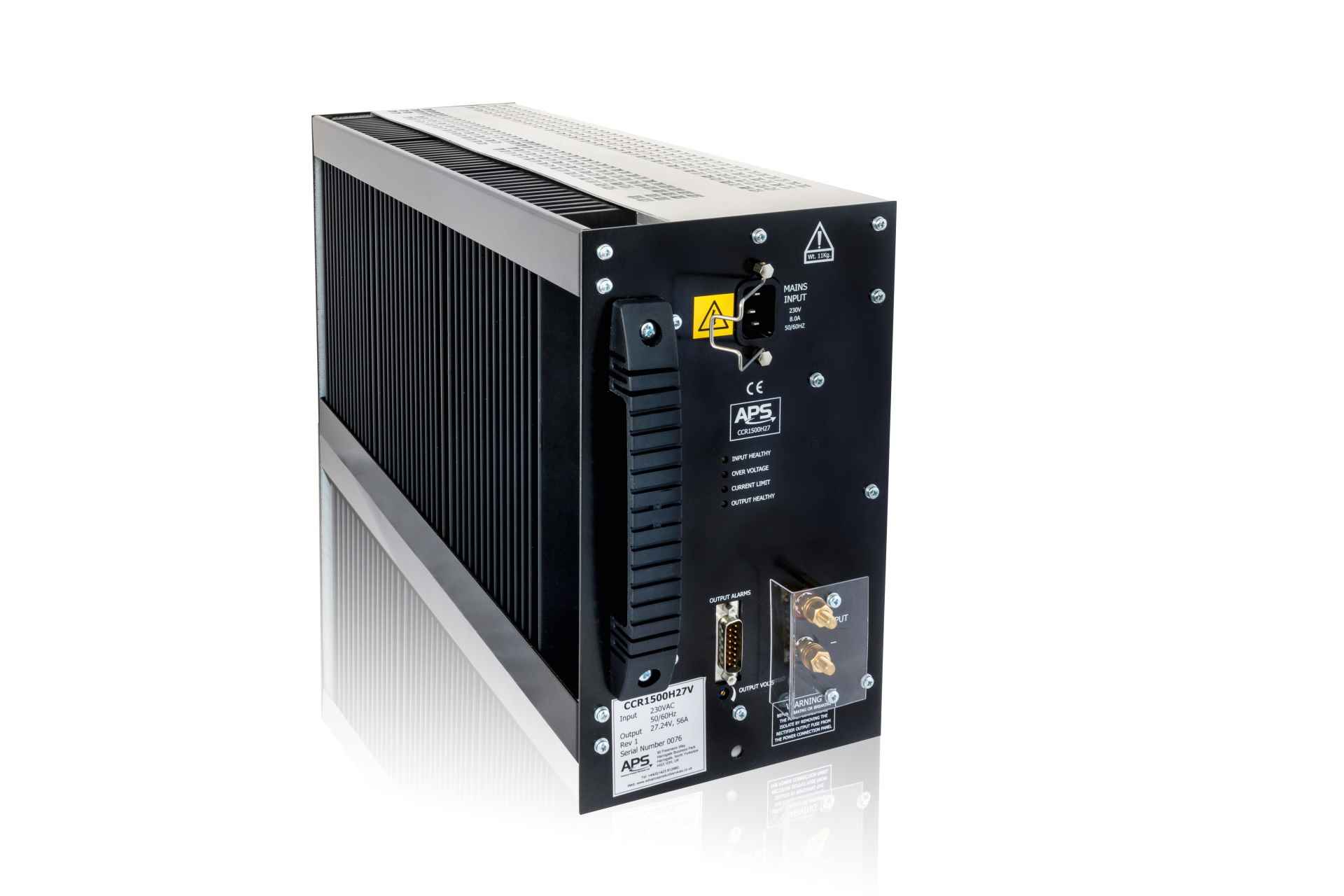

CCR1500 Range

Form, fit and function replacement for the Farnell / Advance Power / APC F2705, F2905 and 160 series rectifiers. Standardised versions  were also manufactured for BT (British Telecoms) by Harmer & Simmons, Brentford, Invensys and Weir.

This unit is one of a range of our Obsolescence Solutions for Farnell / Advance Power PSUs. These are niche telecoms power supplies that are hand-built to order, please check with us on lead times.

  • 180-265VAC operation

  • Connections as original F2705, F2905 and 160 series rectifiers

  • Complete transparency to end user

  • Microprocessor control allows replication of most variants

  • Other variants with minor output voltage changes are available. Please contact us to find out more.

Alternatively, if you know your model number or output specifications and would like us to advise what you need, please contact us and we will get back to you with further details.

Contact us

Click Here For Specifications

BT part no. Farnell Part no. Input Voltage Output Voltage Output Current Envevo Model Number
164/54/28 MK1 F2705X or F2705/X 216 – 264Vac 54.9V 28A CCR1500H54V
164/27/50A MK1 F2705C or F2705/C 216 – 264Vac 27.4V 50A CCR1500H27V
160/54/28A MK1 F2705SX 176 – 264Vac 54.9V 28A CCR1500H54V
160/27/50A MK1 F2705SC 176 – 264Vac 27.4V 50A CCR1500H27V
164/54/28A MK2 F2905SXE 176 – 264Vac 54.9V 28A CCR1500H54V
164/27/50A MK2 F2905SC 176 – 264Vac 27.4V 56A CCR1500H27V
160/54/38A MK1 F2900SXH 176 – 264Vac 54.9V 38A Repair / Refurb only
160/27/75A MK1 F2900SC 176 – 264Vac 27.4V 75A Repair / Refurb only

Looking for a different Farnell system?

Browse our selection of replacement Farrnell Advance PSU options, or choose from the selection below

MAN Range – MAN0140
Farnell NS140 Replacement

MAM Range – MAM0500
Farnell / Advance G/MG 500W Replacement

MAM Range – MAM0060
Farnell / Advance G/MMG 60W Replacement

MAM Range – MAM0150
Farnell / Advance G/MGT Replacement
